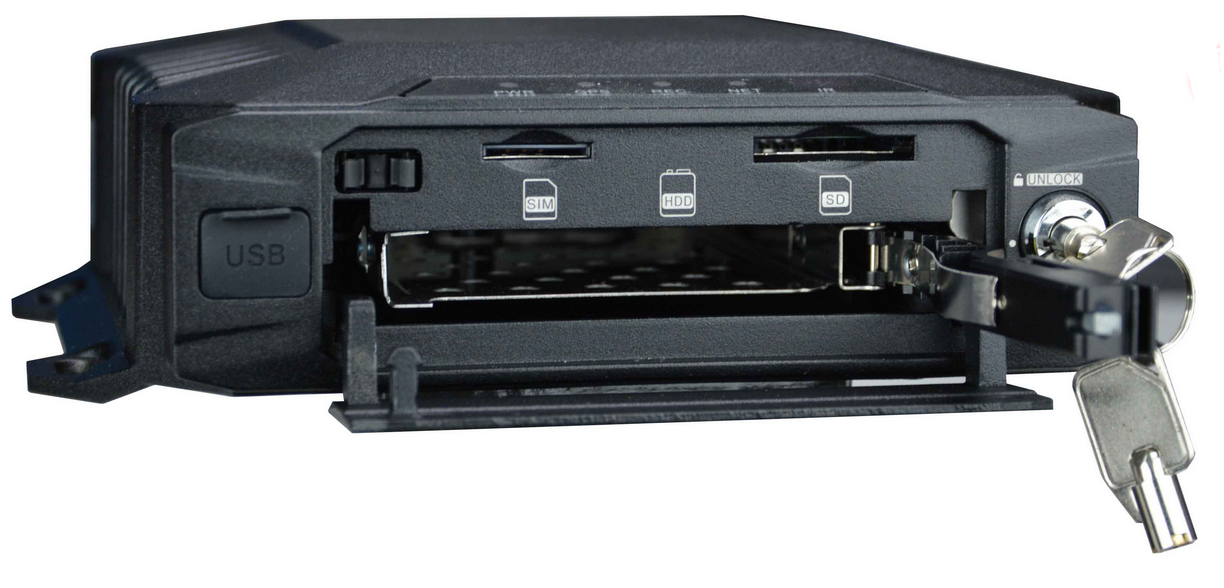

4CH 1080P Mobile DVR SD Card Hard Disk ADAS DSM BSD Face Recognition Fatigue Detect MDVR For Truck Bus

Name: 4CH 1080P Mobile DVR SD Card Hard Disk ADAS DSM BSD Face Recognition Fatigue Detect MDVR For Truck Bus
Brand: Vanwin Tracking
Price: 1 USD

Brand Name : Vanwin Tracking

Model Number : VW628HD

Certification : CE/FCC/RoHS

Place of Origin : Shenzhen,China

MOQ : 1pc

Price : negotiated

Payment Terms : T/T or western Union or Paypal

Supply Ability : 5,000pcs per month; 4CH 1080P Mobile DVR SD card hard disk ADAS DSM BSD Face Recognition Fatigue Detect MDVR for truck bus

Delivery Time : 2-3 days for samples,15-30 days for large orders

Packaging Details : Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .

Power Supply : 8V-36V DC

Mouse Operating : Support

Storage Capacity : HDD/SSD, can support 2TB

Software Support : Client, Server, Playback Software

Applicable : Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining truck fleets

System Upgrading : Supporting SD card, hard drive upgrading and remote upgrading

Basic Function : 4 1080P cameras monitoring with 4G real time, GPS tracking, Wi-Fi

Cameras : 720P/960P/1080P/IP

Ai Function : Built-in DMS and face algorithm

Alarm : 6CH Alarm inputs, 2CH Alarm output

Function : IR Infrared LED Night Vision

Storage : HDD/SSD+SD card

ADAS Camera : Support

BSD : Optional

DMS Camera : Support

Gps : Built-in

Warranty : 18 Months

Contact Now

4CH 1080P Mobile DVR SD card hard disk ADAS DSM BSD Face Recognition Fatigue Detect MDVR for truck bus

The MDVR supports 4 channel FULL 1080P video recording, 4G/5G wireless live video transmission through PC&phone remotely, with GPS tracking on google map, wifi auto downloading, with RJ45, RS232&RS485 serial port, I/O port interface for multiple outer device integration. Its storage (max 2TB) lasts more than 14 days recording.

The complete system includes:

1. One 4CH MDVR with 4G/5G GPS WIFI G-sensor for Option

2. DSA/ADAS/BSD

3. 4 1080p / 960p cameras with extension cables

4. One monitor for the driver

5. HDD/SSD 500GB/1TB/2TB

6. Micphone, Talkback device, Panic button

Main Specification

Item		parameters
Audio and Video Inputs	video input	AHD:4ch 1080/25fps IPC:Scalable 1-4ch
Audio and Video Inputs	audio input	4ch audio input
Audio and Video outputs	video output	Default 1-way CVBS output (VGA output optional)
Audio and Video outputs	speech output	1ch audio output
Audio and video parameter coding	video coding	H.264 Main Profile/H.265
	Resolution	1080P/720P/D1 optional
	audio coding	Default G.726,G.711A optional
storage space	HDD	1 2.5-inch optional: SSD/HDD hard disk
storage space	SD	Support 1 SD card
wireless network	4G	Supports 1 SIM card, optional: all major communication modules in the world
wireless network	WIFI	2.4/5.8G optional
locate mode	BD/GPS	Support for mixed positioning, speed detection, time synchronization
interface	USB	USB2.0 interface, support export data, external engineering treasure
	serial port	Support 1 RS232, 1 RS485, can be connected with external sensor
	I/O	4 level inputs, 2 analog inputs, 2 alarm outputs
	network interface	Support external IPC, support hybrid NVR function
	· Intercom	1 special intercom handheld mark interface
Physical Specifications	size	176.9mm(L)186.8mm(W)54mm(H)
Physical Specifications	weight	NW:1.4kg GW:2kg(M51H-DGNE1-L as a standard)
work environment	operating temperature	-20〜+70℃
work environment	operating humidity	8%〜90%(No condensation)
Other	operator schema	remote control,APP,WEB
	· Gravity sensor	Built-in G-Sensor
	Configurable AI algorithms	Face recognition ,People Counting,ADAS+DMS

Product Details

4CH 1080P Mobile DVR SD Card Hard Disk ADAS DSM BSD Face Recognition Fatigue Detect MDVR For Truck Bus

H----DC 8-36V - Connect red to battery positive, black to battery negative, and yellow to ACC line
of the electrical panel
I----ANV IN1 2 3 4 - Inputs for video/audio cameras. Connect your cameras here with the included cable
which provides a DC connector to power the camera at 12VDC, a video BNC and an RCA for
any sound. The MDVRs support analog CVBS, AHD720P and AHD1080P cameras.
A----VOUT -- Audio video output for CVBS monitors. Connect your monitor here with one of the adapter cables
which provides a DC connector to power the monitor at 12VDC, a video BNC and an RCA for
any sound.
C----LAN - Network port for connecting to a LAN network with the included RJ45 adapter cable
E----GPS - Connector for GPS antenna
F----3/4G - Connector for antenna for data connection on 3/4G mobile network
G----WIFI - Connector for WiFi antenna
D----HMIC - Not used
B----I/O - Connect the supplied cable for connecting inputs and outputs

Cameras for Option

4CH 1080P Mobile DVR SD Card Hard Disk ADAS DSM BSD Face Recognition Fatigue Detect MDVR For Truck Bus

HD Video welcome to view it in the link: https://youtu.be/TfEbHKxrNPQ
